THERMAL TRANSMITTANCE
68 Uw = 0,90* / 78 Uw = 0,84** / 88 Uw = 0,79**
INSTALLATION DEPTH
68/78/88 mm + spacer bar 14 mm
Gaskets
3
These windows seamlessly blend the timeless elegance of classic wood with the strength and lightness of modern aluminium. A wide range of customization options allows you to tailor them precisely to your needs and preferences.
*coefficient calculated using the 4/18/4/18/4 argon gas-filled package – Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar for a window made of a wooden profile (Meranti) and measuring 1,230×1,480 mm
THERMAL TRANSMITTANCE
68 Uw = 0,90* / 78 Uw = 0,84** / 88 Uw = 0,79**
INSTALLATION DEPTH
68/78/88 mm + spacer bar 14 mm
Gaskets
3
Wood-Aluminium Window Colour Options
Pick the perfect window colour to suit your style. Choose from over 200 RAL shades for the aluminium exterior and a wide selection of opaque or stained finishes for the wooden interior—whether you prefer a natural wood grain look or a fully covered, painted finish.
Handles
Our handles made of PVC, aluminium, and wood combine elegant design, functionality, and long-lasting quality. With a wide range of colour options, they can be seamlessly matched to your windows, doors, or overall building style for a harmonious look.
We guarantee top quality, a wide range of colour options, and solutions tailored to meet even the most demanding expectations.
Compare products
| Technical data |
 DUOLINE - 68, 78, 88
|
 SOFTLINE - 68, 78, 88
|
|---|---|---|
| Number of chambers | Solid profile |
Solid profile |
| Installation depth |
Duoline 68 - 68 mm + spacer bar 14 mm |
Softline 68 - 68 mm |
| Number of gaskets | 3 |
2 |
| Thermal transmittance |
Duoline 68 from Uw = 0,90 W/(m2K)* *For a window measuring 1,230x1,480 mm - calculation method, meranti wood, with the argon gas-filled glass package Ug = 0.6 W/(m2K), with the Swisspacer plastic spacer bar. |
Softline 68 Uw = 1,08 W/(m2K)* *For a window measuring 1,230x1,480 mm - calculation method, meranti wood, with the argon gas-filled glass package Ug = 0.8 W/(m2K), with the Swisspacer plastic spacer bar. |
| Glass packages |
Duoline 68 to 46 mm |
Softline 68 to 32 mm |

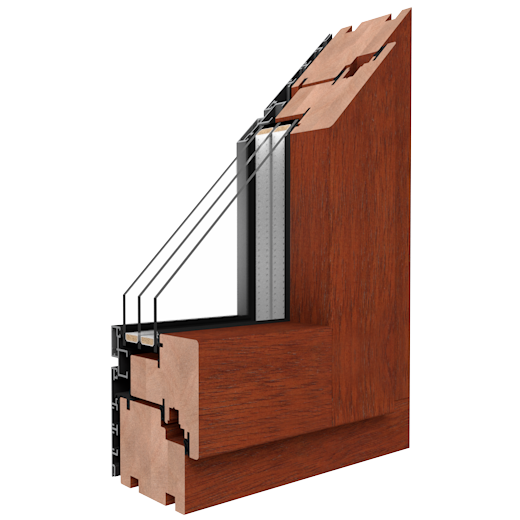

DUOLINE - 68, 78, 88
Number of chambers: Solid profile
Installation depth:
Duoline 68 - 68 mm + spacer bar 14 mm
Duoline 78 - 78 mm + spacer bar 14 mm
Duoline 88 - 88 mm + spacer bar 14 mm
Number of gaskets: 3
Thermal transmittance:
Duoline 68 from Uw = 0,90 W/(m²K)*
Duoline 78 from Uw = 0,84 W/(m²K)**
Duoline 88 from Uw = 0,79 W/(m²K)**
*For a window measuring 1,230x1,480 mm - calculation method, meranti wood, with the argon gas-filled glass package Ug = 0.6 W/(m²K), with the Swisspacer plastic spacer bar.
**For a window measuring 1,230x1,480 mm - calculation method, meranti wood, with the argon gas-filled glass package Ug = 0.5 W/(m²K), with the Swisspacer plastic spacer bar.
Glass packages:
Duoline 68 to 46 mm
Duoline 78 to 50 mm
Duoline 88 to 50 mm

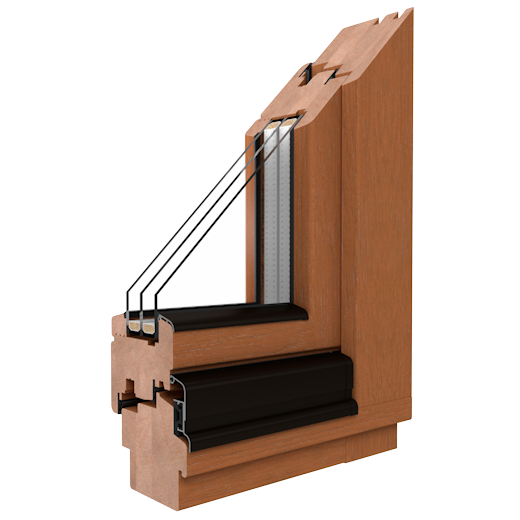

SOFTLINE - 68, 78, 88
Number of chambers: Solid profile
Installation depth:
Softline 68 - 68 mm
Softline 78 - 78 mm
Softline 88 - 88 mm
Number of gaskets: 2
Thermal transmittance:
Softline 68 Uw = 1,08 W/(m²K)*
Softline 78 Uw = 0,9 W/(m²K)**
Softline 88 Uw = 0,8 W/(m²K)***
*For a window measuring 1,230x1,480 mm - calculation method, meranti wood, with the argon gas-filled glass package Ug = 0.8 W/(m²K), with the Swisspacer plastic spacer bar.
**For a window measuring 1,230x1,480 mm - calculation method, meranti wood, with the argon gas-filled glass package Ug = 0.8 W/(m²K), with the Swisspacer plastic spacer bar.
Glass packages:
Softline 68 to 32 mm
Softline 78 to 44 mm
Softline 88 to 54 mm
